HOW TO ASSEMBLE A FEMALE HEAD

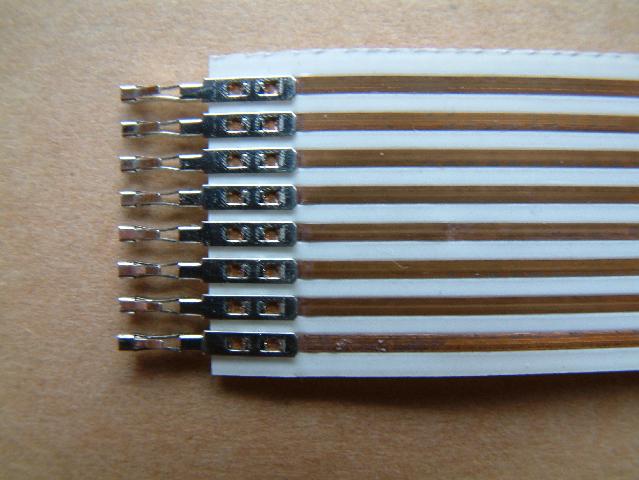

As it happens for the male contacts, the female contacts are crimped on the cable

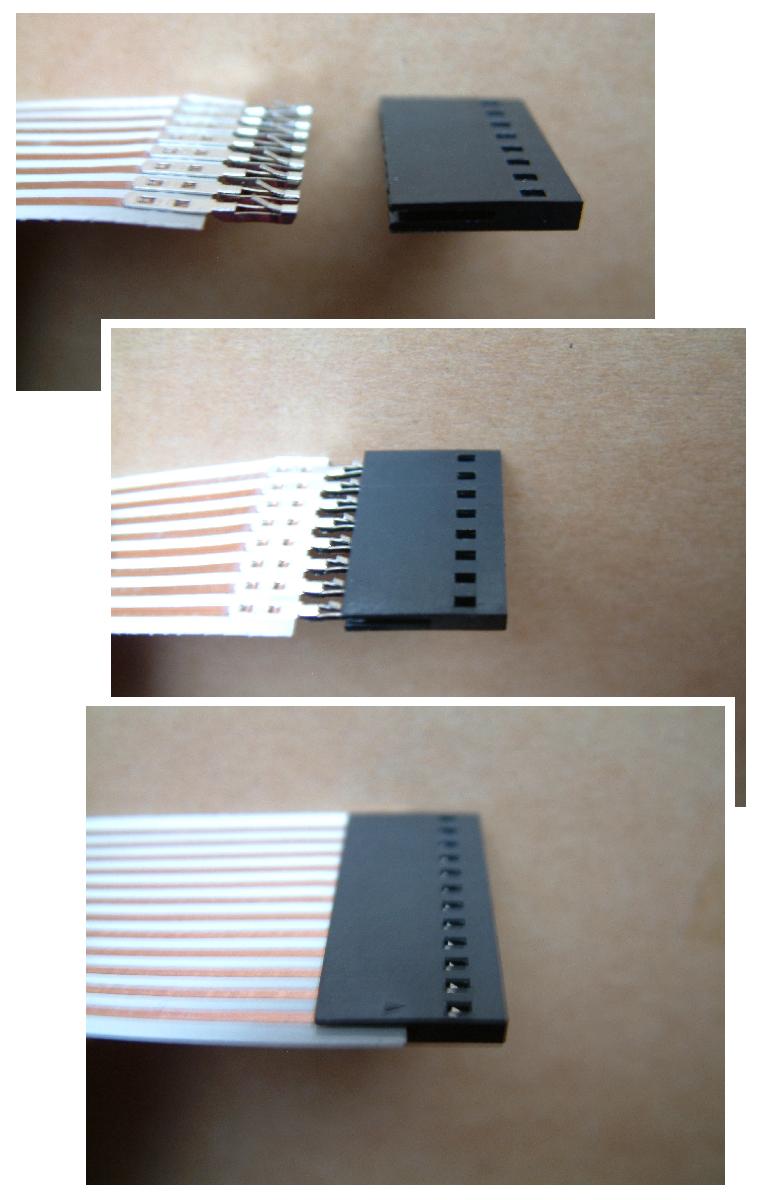

Then the crimped contacts are inserted into the plastic housing
The outcome is a female head, pitch 2.54mm which mates square pins of 0.6 ÷ 0.65mm side
|
