The ShieldFast® range of screened devices
offers full shielding and grounding continuity to cables where they are
most vulnerable at terminations, splices and transitions. The unique
one-piece parts are heat shrinkable to give a snug fit and provide
mechanical protection, strain relief and sealing to the underlying
structure. |
Generic specification | |
Property |
Conditions |
Tensile Strength | 14 MPa |
Elongation | 300% |
Braid Coverage | 360° >93% |
Temperature range | -55°C to +80°C |
DC end-to-end resistance | <1 mOhm |
Sealing | IP68 |
Low smoke, low toxicity, zero halogen |
DESIGN

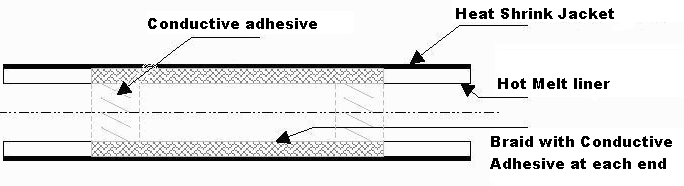

The general design features a heat shrinkable sleeve which
contains shielding braid, conductive adhesive and hot
melt adhesive. Products are supplied circular in cross-section to
specified internal diameter and length. The basic ShieldFast® design is
easily adapted to suit different cable braid termination requirements or
configurations as illustrated.
|
Shielding Task Examples |
|
BEFORE | AFTER | |
Cable Splice, Braid Replacement |
||
BENEFITS
|
Cable Transition |
|
Earth Bond to Spigot, Gland, Feedthrough |
||
Braid Termination at Connector or Adaptor |
