CHOOSE THE JUMPER'S PITCH

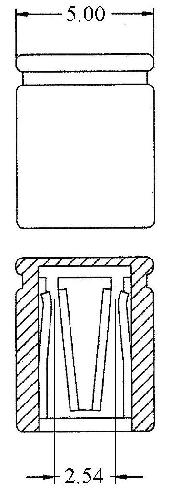

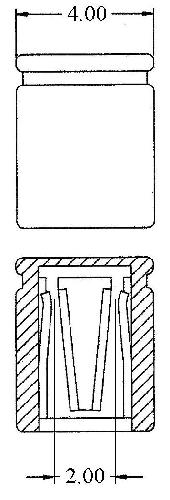

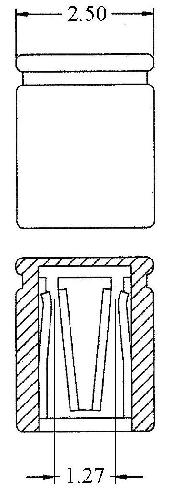

            Pitch 1.27mm jumpers                                   Pitch 2.00mm jumpers                                     Pitch 2.54mm jumpers

        Pitch 1.27mm jumpers                                    Pitch 2.00mm jumpers                                    Pitch 2.54mm jumpers

        Specification:                                                 Specification:                                                   Specification:

        Current rate: 1A                                               Current rate: 1A                                                 Current rate: 3A

        Insulation resistance: 5000MΩ Min.                  Insulation resistance: 5000MΩ Min.                   Insulation resistance: 5000MΩ Min.

        Contact resistance: 30mΩ Max.                        Contact resistance: 20mΩ Max.                         Contact resistance: 20mΩ Max.

        Operating temperature: -40°C ÷ +105°C          Operating temperature: -40°C ÷ +105°C           Operating temperature: -40°C ÷ +105°C

        Material:                                                        Material:                                                         Material:

        Insulator: PBT 30% glass filled UL94V0           Insulator: PBT 30% glass filled UL94V0            Insulator: PBT 30% glass filled UL94V0

        Contact: copper alloy                                       Contact: copper alloy                                         Contact: copper alloy

        Plating: Gold or pure Tin over Nickel                Plating: Gold or pure Tin over Nickel                  Plating: Gold or pure Tin over Nickel
