MALE CONNECTORS, PITCH 2.54mm

(The way to build Your custom part number)

Characteristic:                                  [DIMENSIONS]

Look at the drawing of connector You need, then follow the instructions You will find beside the drawing.

The dimensions A, B, C and, where requested, D must be written in mm unit (max two decimal values).

Click on the icon of the desired connector or scroll the page to watch each option:

Hereunder You can find the details of each connector:

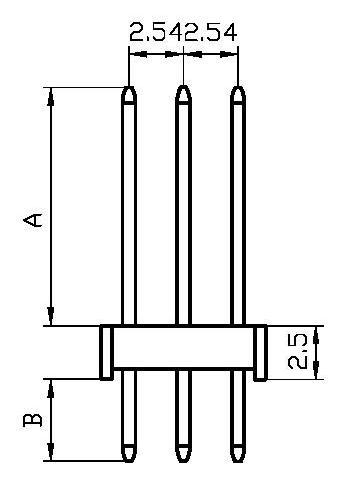

Write A, B and C needed dimensions.

With respect to height of the insulator (C)

the following options are available:

C = 1,5

C = 1,7

C = 2,5

As soon as our Technical Department receives the form correctly filled in,

it will be our care to answer and to send You the technical drawing with all specifications.

       UP

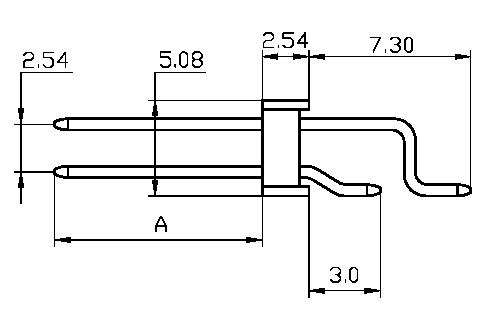

Write A, B and C needed dimensions.

With respect to dimension  C

the following options are available:

C = 2.3 (insulator height 1.50)

C = 2.5 (insulator height 1.70)

C = 3.3 (insulator height 2.50)

The C dimension can change following Your needs:

if You write a C dimension different from the standard above described, please in the "notes" field of the form write also the desired height of the insulator.

The standard dimension for B is 5.00mm: on demand it is possible to change this dimension too.

On request, it is possible to order these connectors with
caps for pick 'n' place machines and tape and reel packaging.

Please write in the "notes" field of the form the preferred packaging.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write A, B and C needed dimensions.

In the "notes" field of the form write also the desired height of the insulator

(heights of 1,5mm , 1,7mm and 2,5mm are available).
The pin is always square section with 0.64mm side.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write A, B, C and D needed dimensions.

With respect to height of the insulator (C)

the following options are available:

C = 1,5

C = 1,7

C = 2,5

As soon as our Technical Department receives the form correctly filled in,

it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write A, B, C and D needed dimensions.

With respect to height of the insulator (C)

the following options are available:

C = 1,5

C = 1,7

C = 2,5

The standard dimension for B is 5.00mm: on demand it is possible to change this dimension too.

On request, it is possible to order these connectors with
caps for pick 'n' place machines and tape and reel packaging.

Please write in the "notes" field of the form the preferred packaging.

As soon as our Technical Department receives the form correctly filled in,

it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write A, B and C needed dimensions.

With respect to height of the insulator (C)

the following options are available:

C = 1,5

C = 1,7

C = 2,5

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write A, B and C needed dimensions.

With respect to dimension  C

the following options are available:

C = 2.3 (insulator height 1.50)

C = 2.5 (insulator height 1.70)

C = 3.3 (insulator height 2.50)

The C dimension can change following Your needs:

if You write a C dimension different from the standard above described, please in the "notes" field of the form write also the desired height of the insulator.

The standard dimension for B is 7.50mm: on demand it is possible to change this dimension too.

On request, it is possible to order these connectors with
caps for pick 'n' place machines, with tape and reel packaging and with alignment pins (diameter of 1.58mm, hole on the PCB of 1,70mm diameter).

Please write in the "notes" field of the form the preferred packaging and other characteristics needed.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write A, B and C needed dimensions.

In the "notes" field of the form write also the desired height of the insulator (heights of 1,5mm , 1,7mm and 2,5mm are available).
The pin is always square section with 0.64mm side.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write A, B, C and D needed dimensions.

With respect to height of the insulator (C)

the following options are available:

C = 1,5

C = 1,7

C = 2,5

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write A, B, C and D needed dimensions.

With respect to height of the insulator (C)

the following options are available:

C = 1,5

C = 1,7

C = 2,5

The standard dimension for B is 7.50mm: on demand it is possible to change this dimension too.

On request, it is possible to order these connectors with
caps for pick 'n' place machines, with tape and reel packaging and with alignment pins (diameter of 1.58mm, hole on the PCB of 1,70mm diameter).

Please write in the "notes" field of the form the preferred packaging and other characteristics needed.

As soon as our Technical Department receives the form correctly filled in,

it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write the only A needed dimension.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write the only A needed dimension.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write the A and B needed dimensions.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

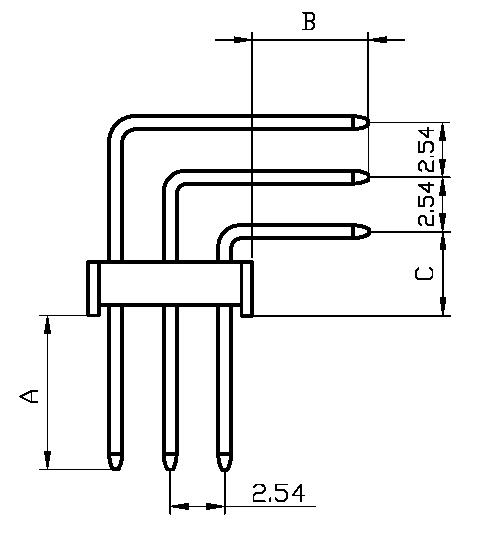

Write the A, B and C needed dimensions.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write the A, B and C needed dimensions.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

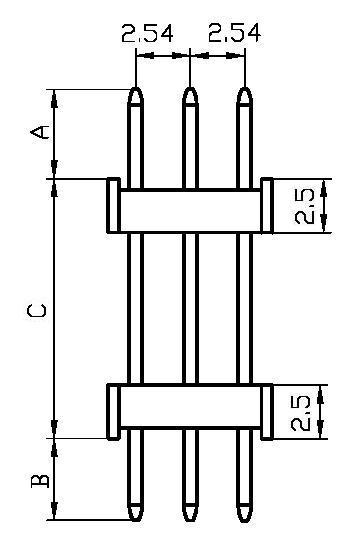

Write the A, B, C and D needed dimensions.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

Write the A, B, C and D needed dimensions.

As soon as our Technical Department receives the form correctly filled in, it will be our care to answer and to send You the technical drawing with all specifications.

       UP

We are able to supply a wide range of female connectors which mate with the male connectors above shown.  Please contact our Technical Dept. to be carefully supported in finding the best connector for Your needs.

Since it is impossible to produce only few pins with the desired plating, samplings will be supplied with the pins' plating available at the moment of request
