How to build Your custom part number for FFC cables

(Flat Flexible Cables)





[Componente di FrontPage Salva risultati]

Click the features to know how to fill in the form. If You desire only to make technical or commercial questions, don't build the part number. .





                  Flexibility   Type          Pitch           Contacts         Length                             H e a d   o f   t h e    c a b l e                          Standard UL



FFC ------/// -



Please complete this form with Your data so that we can get in touch with You:                                             * : required field

Company name (or first and last name)   *

Referring person       *

Street address *,  Number  ,  Postal/Zip code  ,

City  * ,  Province/State  * , Country    *

Telephone  * ; Fax  ; E-mail: *

                                                                                                                                                 This e-mail address will be used only to answer Your questions

Please insert Your requests so that we can make You the best and most complete offer:

Needed quantity      (obligatory for any quotation)

Other technical or commercial requests:  (the more detailed Your request will be, the more precise our answer will be: thank You)









Copyright © 2005 Fiortech. All rights reserved.                                                                                    Last update: 15/02/07

Fiortech respects Your privacy and is committed to protecting the personal information that You furnish. In general, You can visit Fiortech on the Internet without identifying Yourself or providing personal information. There are times when Fiortech may need personal information from You and this Privacy Statement describes the information Fiortech collects from You and how we may use it.
Personal Information means any information that may be used to identify an individual. This includes but is not limited to: first and last name, email address, mailing and residential address, telephone number, company You work for and other information needed to provide a service You have requested.
When we collect personal information from You, the information will only be used to respond to requests for products, documentation and services, to process an order, to conduct a transaction, to correspond.

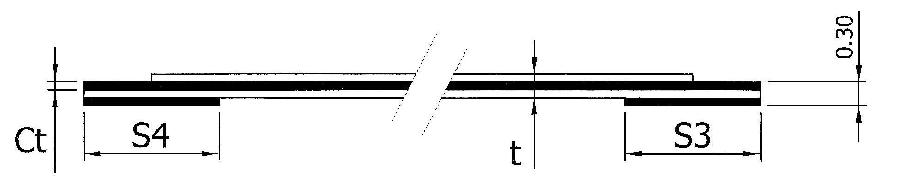

Cable characteristics:                                  [FLEXIBILITY]



                                               S  =  Superflexible         [ Ct = 0.035     ;    t = 0.12    ;   referred to the hereunder drawing ]

                                                          F  =  Flexible                 [ Ct = 0.05       ;    t = 0.14    ;   referred to the hereunder drawing ]

                                                          L  =  Low flexible         [ Ct = 0.1         ;    t = 0.18    ;   referred to the hereunder drawing ]





Back to the building of the part number

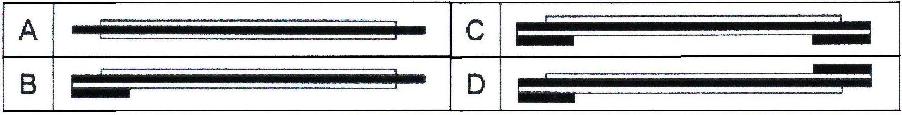

Cable characteristics:                                      [TYPE]     : assembly type





Back to the building of the part number

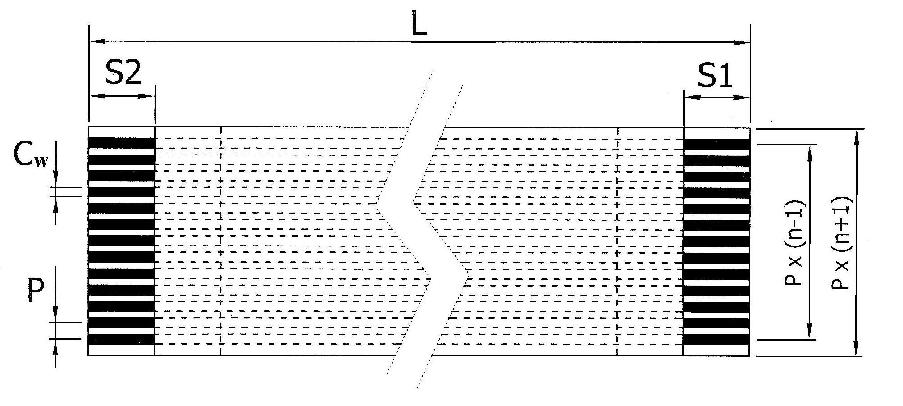

Cable characteristics:                                  [PITCH]     : signed as "P" on the drawing



                   050  =  pitch of 0.5mm          [ conductor's width Cw = 0.3mm    ;   referred to the hereunder drawing ]

                       100  =  pitch of 1.0mm           [ conductor's width Cw = 0.6mm    ;   referred to the hereunder drawing ]

                       125  =  pitch of 1.25mm         [ conductor's width Cw = 0.8mm    ;   referred to the hereunder drawing ]

                       254  =  pitch of 2.54mm         [ conductor's width Cw = 1.27mm  ;   referred to the hereunder drawing ]





Back to the building of the part number













Cable characteristics:                 [NUMBER OF CONTACTS]     : signed as "n" on the drawing



                                   values of  "n"  between   03    and    80  are available











             Back to the building of the part number





































Cable characteristics:                     [LENGTH]     : signed as  "L"  on the drawing



                                  The minimum length is 30mm ( sign as  0030 )

                     Write the total length of the cable in  mm unit





Back to the building of the part number

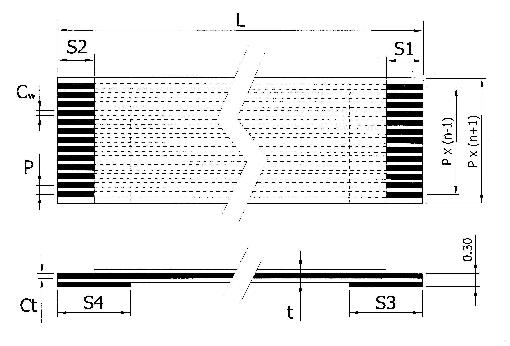

Cable characteristics:                        [HEAD]     : signed as   S1 / S2 / S3 / S4



Please write the desired length for the values S1, S2, S3 and S4 (see the hereunder drawing).

For S1 e S2 the following values are available:
                                    3  (3mm)

                                                         4  (4mm)

                                                         5  (5mm)

                                                         6  (6mm)

For S3 e S4 the following values are available:
                                  06  (6mm)

                                                      08  (8mm)

                                                      10  (10mm)

                                                      12  (12mm)

                                                      15  (15mm)

The values of S3 and S4 must be bigger than the ones of S1 and S2





Back to the building of the part number











Cable characteristics:                                [UL STANDARD]



The cables can have different characteristics on the basis of UL styles:



                               2896   =   Standard UL 2896           (80°C  /  30V)

                               2062   =   Standard UL 20624         (80°C  /  60V)

                               2643   =   Standard UL 2643           (105°C  /  300V)





Back to the building of the part number
